Understanding the Slab Elevation Verification Report

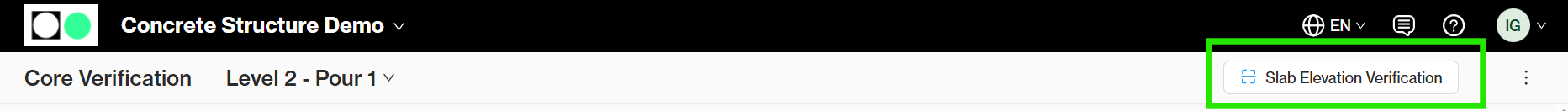

Results for the Slab Elevation Verification Report will be delivered on the next business day. The report will be accessible on the Pour Overview page as shown below:

Reading the Report:

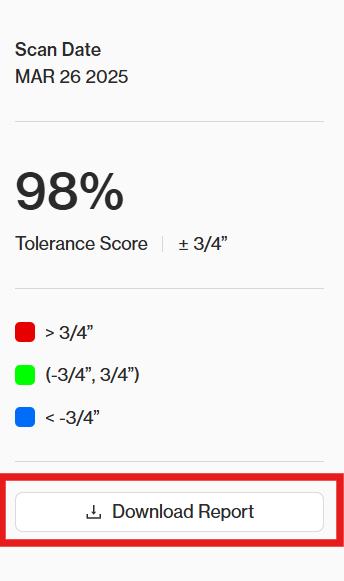

Tolerance Score:  The tolerance score represents the percentage of the slab where the profile matched the provided model or reference elevation.
Color Coding: The as-built presents the finished slab overlaid with the architectural plan and is color-coded to represent conformance to the provided slab profile.  Green areas indicate the slab is within the provided tolerance  Blue areas indicate portions of the slab that are poured below the required elevation Red areas indicate portions of the slab that are poured above the required elevation



Note: A downloadable PDF version of the report is also available.

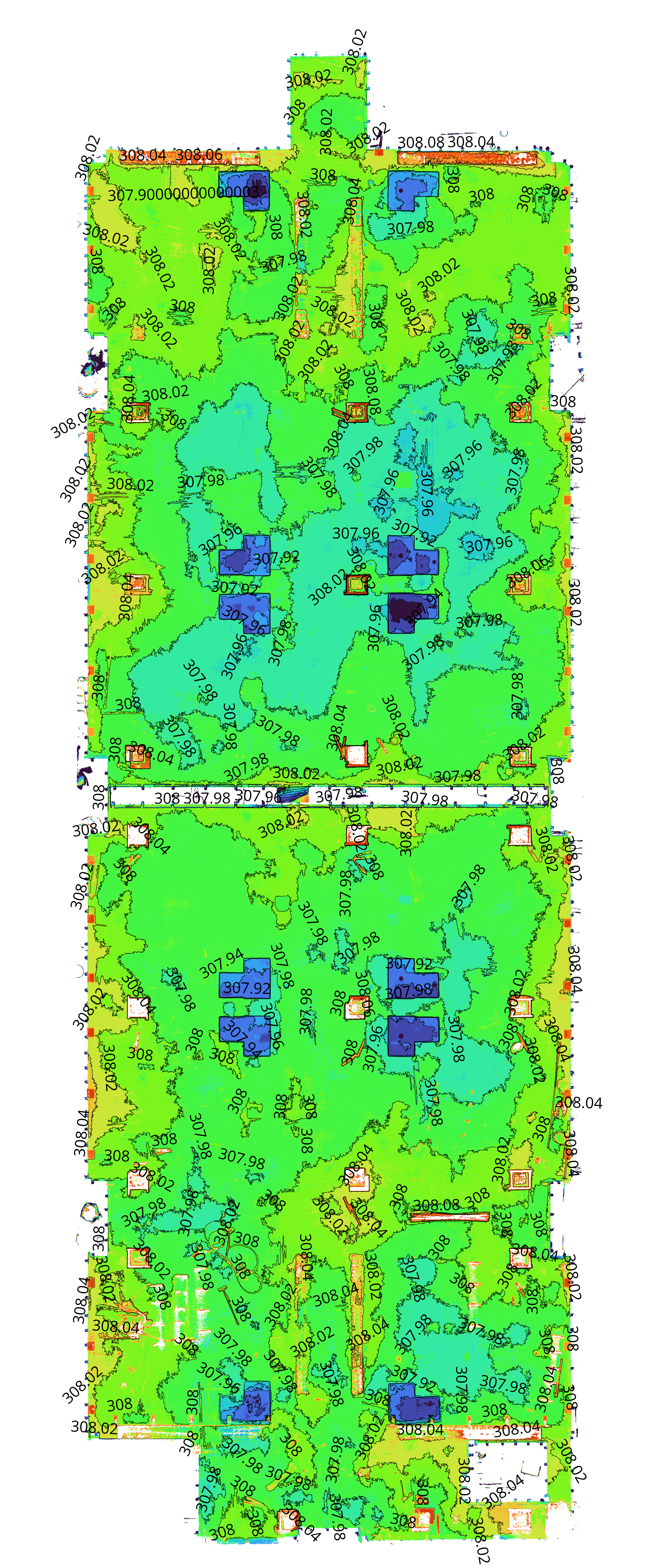

In addition to the "Conformance Map" the PDF Report also contains a topographical map of the slab profile that is color-coded to represent the absolute elevation of every location on the deck.
