Siteaware recommends utilizing one of the following methods to transfer the GCP readings:
-
Upload the coordinates via the CaptureApp:
After transferring the file to the controller, return to the CaptureApp and Select Step 2: Upload GCPs
select the measurement tool and coordinate system to transfer the GCPs to Siteaware.
2. Upload the coordinates via the Self-Capture Upload Portal:
- Transfer the GCP coordinate readings to a computer.
-

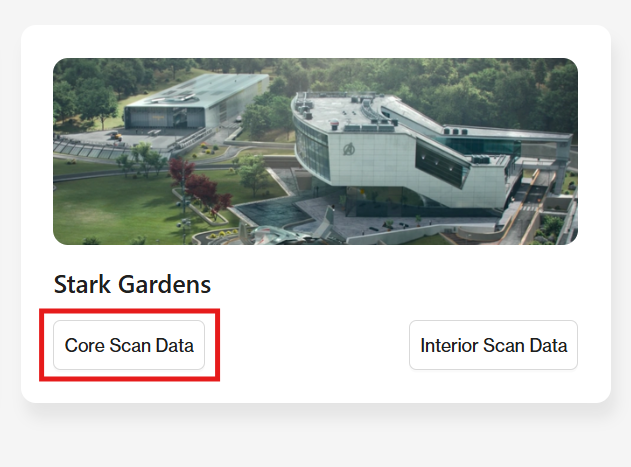

From the project selection page, choose Core Scan Data on your project, and choose the scan for which you wish to upload data.
-

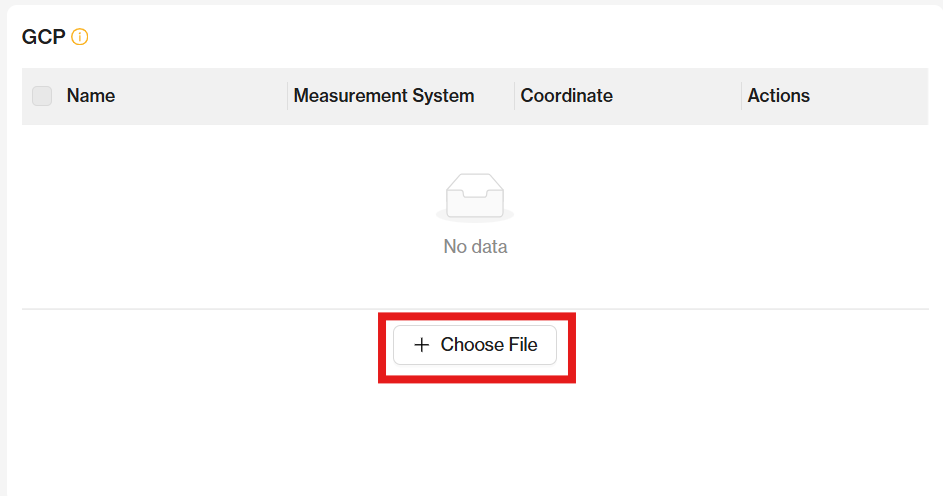

Under the GCP table, select Choose File,

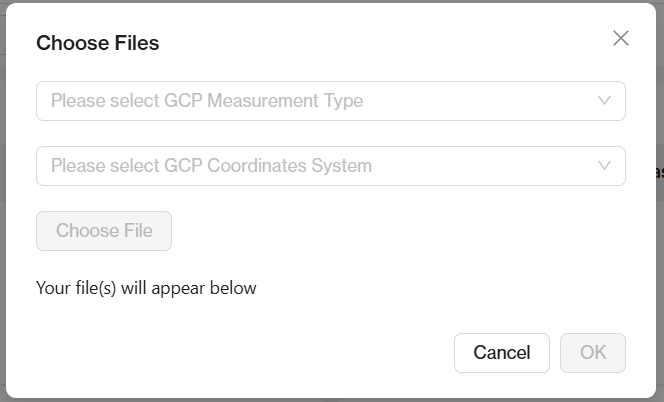

select the Measurement Tool (TS/Gridlines/RTK) and Coordinate Systems (Global/Local). Then choose the GCP file to upload.
The GCP file can be provided in any format.
