Preflight Checks (while in office/trailer):
- Verify the drone, controller, and spare batteries are fully charged.
- Clean the lens of the drone.
- Confirm a fast SD card is inserted in the drone (minimum 64G, V30 or U3)
- Verify that total station readings have been taken of GCPs and, if not done yet, upload them to Siteaware via the CaptureApp.
- Review the mission plan prepared by Siteaware and notify your CXM if there are obstacles missing or if the mission doesn’t cover the entire pour area.
- Check the current airspace regulations.
Once on the Deck:
- Verify that a minimum of 5 SiteAware GCPs are visible on the deck.
- Go to the takeoff point

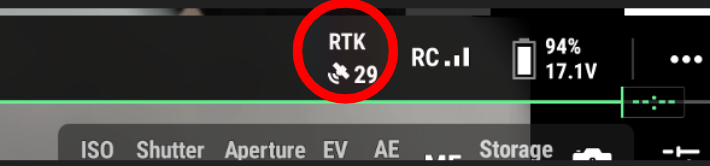

- Verify that the controller is connected to the internet and that there is an RTK fix.
RTK is white
Capture Images
- Start the mission.
- Stay alert and visually follow the drone during the entire flight to avoid any obstacles that may enter the drone’s path.
Post-scan Checklist (From the Field):
- Land the Drone
- Turn the Controller and Drone OFF
Upload Images
- Remove the SD card from the drone and place it in the controller.
- Using the CaptureApp upload the images to the relevant scan.
Charge the controller and used batteries so they are ready for the next scan.
