Step 1: Place GCPs
It is recommended to perform this step during the surveyor's layout

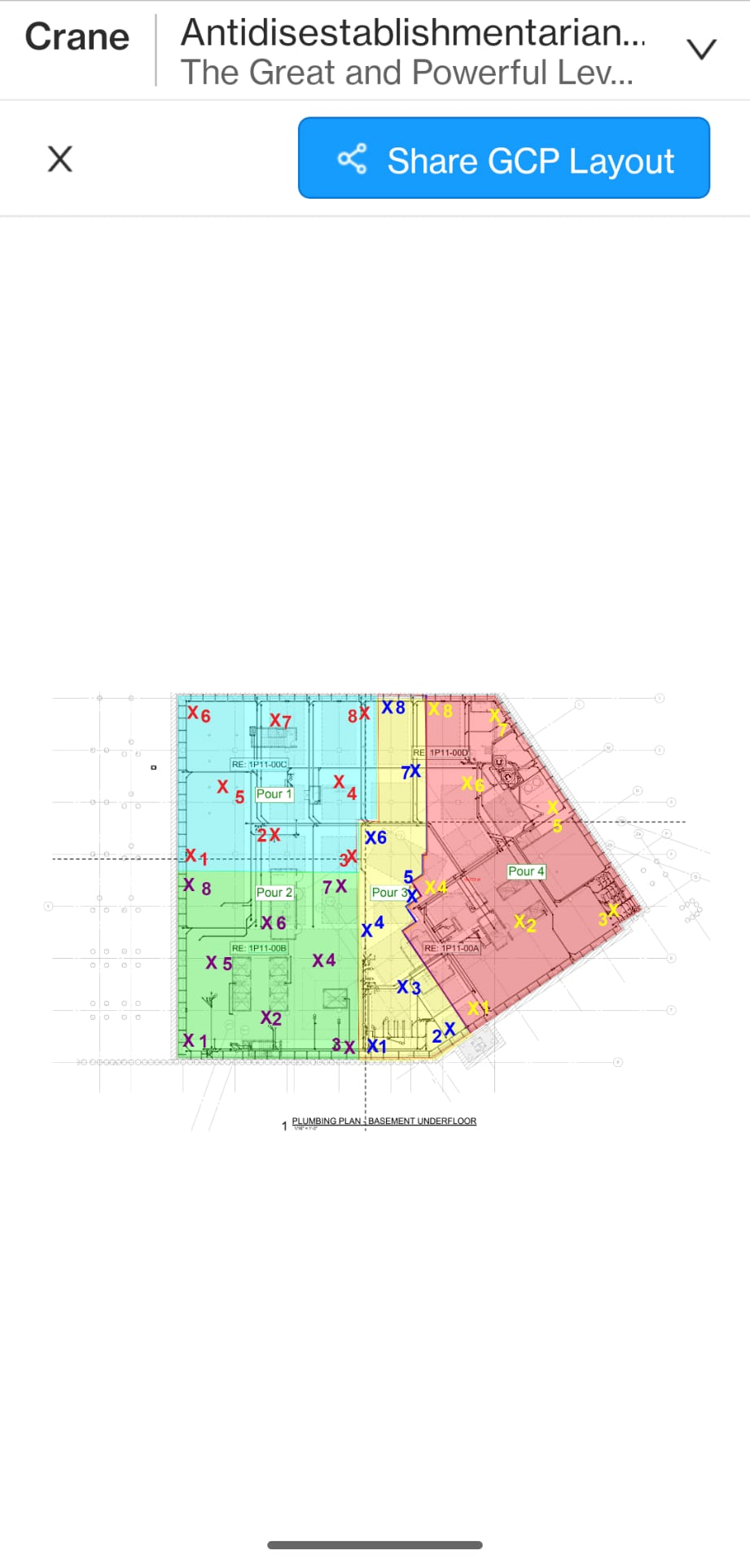

Enter step 1 of the Capture Guide on the CaptureApp and place a sticker in every location noted on the map provided by Siteaware.
The map can be shared with the surveyor by using the Share button
Step 2: Survey the GCPs
Measure the location of each sticker using a Total Station (TS).
Step 3: Extract the Coordinates
Create or extract a .csv file containing the Northing, Easting, and Elevation (x,y,z coordinates) of each point.
Alternative Method: Take a picture of the TS data collector showing the coordinates of each point.
Step 4: Upload GCP Coordinates
Upload the coordinates file to the “Self-Capture Upload Portal” or via the CaptureApp
